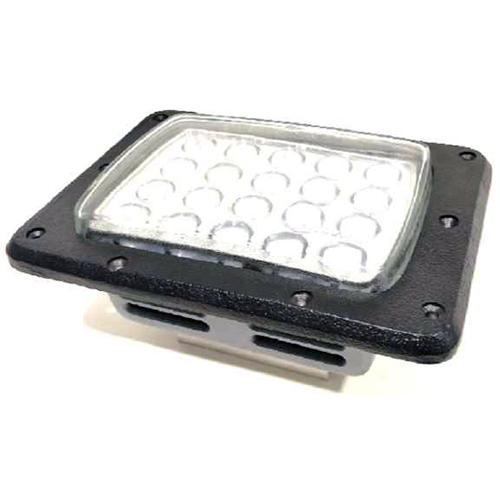

RS2 LED Head Light

RS2 LED Head Light

25000 - 35000 INR/Piece

Product Details:

X

Price And Quantity

  • 500 Piece
  • 25000.00 - 35000.00 INR/Piece
  • 25000 - 35000 INR/Piece
  • 25000 INR/Piece

Product Description

Housing Specification

Body Material

Aluminum

Cover

Toughened Glass

Gasket

Silicon

Accessories

Stainless Steel

Paint

Powder Coating

Mounting

On 4 screws

Power

0.75mm2 triple shield wire

Certificate

CE, RoHS, BIS, FCC, BEE

Technical Specifications

Voltage Range

110V DC/ 24V DC

Power Consumption

As per sheet below

PF

>0.95

THD

<15%

Phase type

Single phase

Internal wiring

Teflon

Input wire

3 Core (Red Phase, Black Neutral, Green Ground)

Frequency

50Hz-60Hz

Efficiency

>85%

Illuminance Design

LED + Reflector

Storage Temperature

-25°C ~ +65°C(Best 25°C)

Lighting Specifications

Available wattages

15W, 20W,

No. of LEDs

Oponal

Lumens Output (Data sheet)

145 lumens/Watts

Color Temperature

2800~6500k(optional)

Beam Angle

120°

CRI

>80 Ra

Operating Temp.

-40°C to 60°C

Life Span

>50000H





OLIVE EXPORTS PRIVATE LIMITED

* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.
