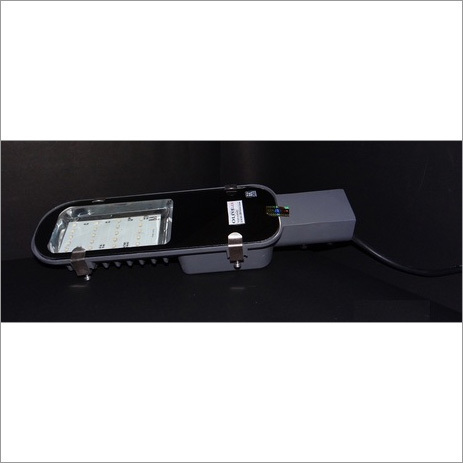

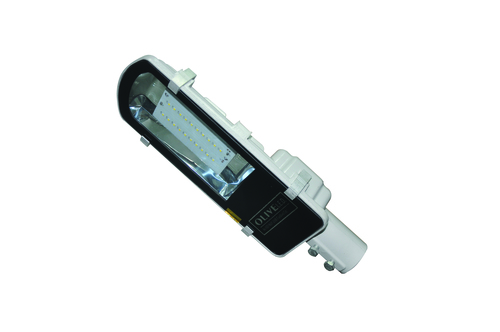

LED Street Lights (SLOL10-20H)
Product Details:
X
Product Description
LED Street Lights (SLOL10-20H)Technical Specifications
| Voltage Range | 90V-290V AC |
| Power Consumption | As per sheet below |
| PF | >0.95 |
| THD | <10% |
| Phase type | Single phase |
| Internal wiring | Ptfe |
| Input wire | 3 Core (Red Phase, Black Neutral, Green Ground) |
| Frequency | 50Hz-60Hz |
| Efficiency | >85% |
| Illuminance Design | LED + Reflector |
| Storage Temperature | -25C ~ +65C(Best 25C) |
Housing Specifications
| Body Material | Aluminum |
| Dimension | 370x97x65mm |
| Weight | 2Kg |
| Ingress Protection | IP-65 |
| Pole Diameter | 1to 1.5 |
| Cover | Toughened Glass |
| Gasket | Silicon |
| Accessories | Stainless Steel |
| Paint | Powder Coating |
| Mounting | Pole Clamp |
| Power Cord | 0.75mm2 triple shield wire |
| Certificate | CE, RoHS, BIS, FCC, BEE |
Lighting Specifications
| Available wattages | 24W, 38W |
| No. of LEDs | 20, 32 |
| Lumens Output (Datasheet) | 130 lumens/Watts |
| Color Temperature | 2800~6500k(optional) |
| Beam Angle | 120 |
| CRI | >80 Ra |
| Operating Temp. | -40C to 60C |
| Life Span | >50000H |
| No. of L.E.D. | 20 |
| Working Volt Range | 110V to 270VAC or 12/24/48V DC |
| Frequency Range | 47~60 Hz |
| Power Consp. in appx. Watt | 27 |
| Lumens Output | 2400 |
| Colour Temperature | 6500K |
| Beam Angle | >120/ 60X120 |
| CRI | >70 Ra |
| Application Efficiency | 100% |
| Operating Temp. | -20C to 60C |
| Working Humidity | <95% |
| Life Span with L-70 | 50000 hrs |
| Power Factor | >.90% |
| Power Efficiency | >80% |
| THD | <10% |
| Metal | Alm. Dye Cast |
| IP Rating | IP 65 |
| Commanding ht. in mtrs. | 4 |
| Flux Lux | 15-20 |
| Dimensions (outer size)mm | 370 x 97 x 65 |
| Weight | 1.500kgs |
| pole/clamp size/base | 63/54 |
| Applications | street & roads |
