Product Description

Unique Features

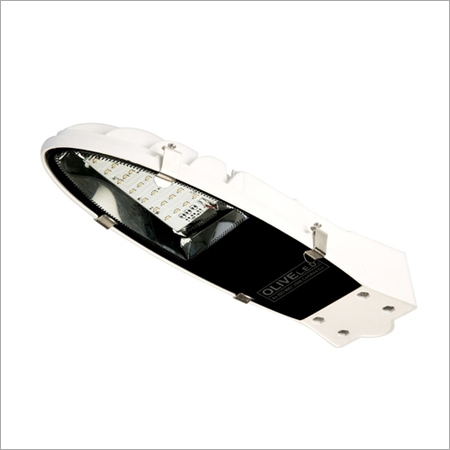

Designed and die casted with high class LM-06 grade aluminium supported with all SS 304 grade accessories, toughened glass and equipped with LM 80 certified LEDs and electronic component to perform and give best possible results.

Applications: Street, Lawn, Garden, Compound, Industry etc.

Features:

High voltage protection
Over current protection
Over heat protection
Surge protection 4KV
Short Circuit protections

Housing Specifications

Body Material	Aluminum
Dimension	468x302x98mm
Weight	8 Kg
Pole Diamete	IP-65
Pole Diameter	2.5" to 3
Cover	Toughened Glass
Gasket	Silicon
Accessories	Stainless Steel
Paint	Powder Coating
Mounting	Pole Clamp
Power Cord	1mm² triple shield wire
Certificate	CE, RoHS, BIS, FCC,BEE

Technical Specifications

Voltage Range	90V-290V AC
Power Consumption	As per sheet below
PF	>O.95
THD	<10%
Phase type	Single phase
Internal wiring	ptfe
Input wire	3 Core (Red Phase, Black Neutral, Green Ground)
Frequency	50Hz-60Hz
Efficiency	>85%
Illuminance Design	LED + Reflector
Storage Temperature	-25C ~ +65C(Best 25C)

Lighting Specifications

Available wattages	100W, 125W, 150W
No.of LEDs	80,120,160
Lumens Output (Datasheet)	130 lumens/Watts
Color Temperature	2700~6500k(optional)
Beam Angle	120
CRI	>80 Ra
Operating Temp.	-40C to 60C
Life Span	>50000H
